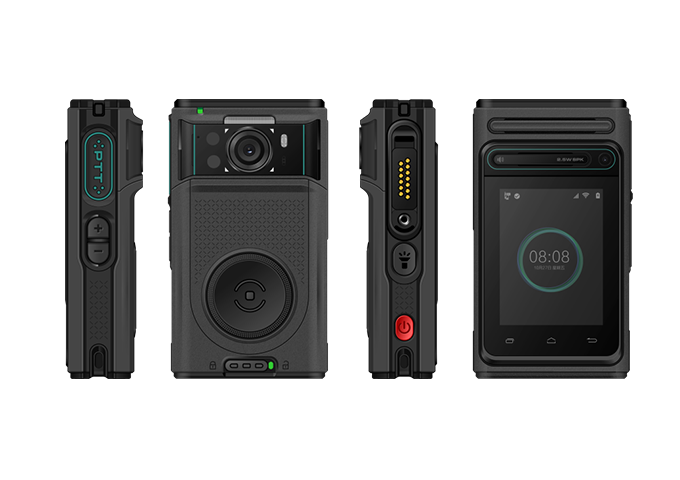

The C005 is a professional evidence gathering device, also known as unbiased witness; It is a high performance and user-friendly camera, supports 3G 4G LTE and WiFi network, achieves real-time audio&video transmission of on-site video to the command center, improves the situation awareness and decision-making ability of dispatchers. Not only does it provide users with an unprecedented fast connection, vibrant display and powerful and efficient performance experience, but it also avoids massive loss of battery power.
* Big button, one-touch to record
* 4G, WIFI, Bluetooth, support real-time communication
* GPS/Beidou/GLONASS positioning
* 9.5 hrs recording time with one battery for 1920p*1080P, support battery replacement without a shutdown
* 2.4 inches color touch screen
* Video Resolution: 1920p*1080p@30FPS,1280p*720p@30FPS, 840p*480p@30FPS
* Image Resolution: Main Camera：48MP
* Type-C USB cable type
* Red & Blue Light for alert attention
| Dimensions | 100mm×60mm×30mm |
| Weight | 147g |
| Display | 2.4-inch color touchscreen |
| Key Buttons | Photograph, Video record, Audio record, PTT, Power, Return, Volume, Light button |
| LED Indicator | Yes |
| Red & Blue Light for alert attention | Yes |
| USB | Type C |
| 2G/3G/4G | Yes |
| GPS | Yes |
| Bluetooth | Yes |
| WiFi | Yes |
| SIM card slot | Single NANO-SIM card slot |
| Field of View | 110°horizontal wide angle, less distortion, see more real |
| Encoding & Format | MP4 (H.264 ) |
| Night Vision | Support, visible distance 10 meters to see the shape of a person |
| Infrared Light | 2pcs Infrared lights, switch automatically or manually |
| Exposure/ White Balance | Auto |
| Video Resolution | 1920*1080p@30FPS,1280*720p@30FPS, 840*480p@30FPS |
| Video Format | MP4 (H.264 ) |
| Audio Format | WAV |
| Image Resolution | Main Camera：48MP, 36MP, 32MP, 20MP, 16MP; Vice Camera: 5MP |
| Image Format | JPEG |
| Pre and Post Event Recording | Support |
| File Tagging Capability | Support |
* Capacity: 3800mAh replaceable and rechargeable lithium-ion battery
* Charging Time: Less than 3 hours (single battery )
* Continuous Working Time(Screen off and infrared off): 9.5 hrs with one battery with 1080p; 19 hrs with two batteries with 1080p
* Backup battery: 60mAh lithium-ion built-in battery. The working state can be maintained in 5min, when replace the batteries during recording.
* Low Battery Alert: Support
Dust/Water Protection: IP67
Drop Test: 2 Meters
Operating Temperature: -30℃ to +55℃
Operating Humidity: ≤95%
* Browsing/ Retrieve / Playback: Video and audio, photo saved in the device can be browsed, retrieved and replayed according to date/time.
* Watermark/ Character superimposition: Automatic overlay in the recorded video and pictures, such as department ID, user ID, date and time stamp, GPS coordinates
* Unique ID number: Include 7 digit device ID and 6 digit user ID
* Log Record: Auto record running status and operation information, such as on/off time, video time, recording time and photographic operation information. Log reading and cleaning can only be done by authorized users and management software.
* One key SOS alarm linkage: In an emergency, user activate the SOS button to trigger the alarm and send alarm info to the IDEM system, and send back the device's GPS information, real-time video to the IDEM system to request remote assistance and police support.
* Key file marking: To mark key files through the way of one-click operation, marked files should be able to be retrieved in the IDEM platform, and can be distinguished from other files.
* Intercom / PTT function (optional feature): Through intercom system, support 2-way audio intercom between BWC and BWC, or BWC & platform.
